Ultrafiltration Systems
A 0.015-micron membrane barrier for ice, beverage, and equipment protection

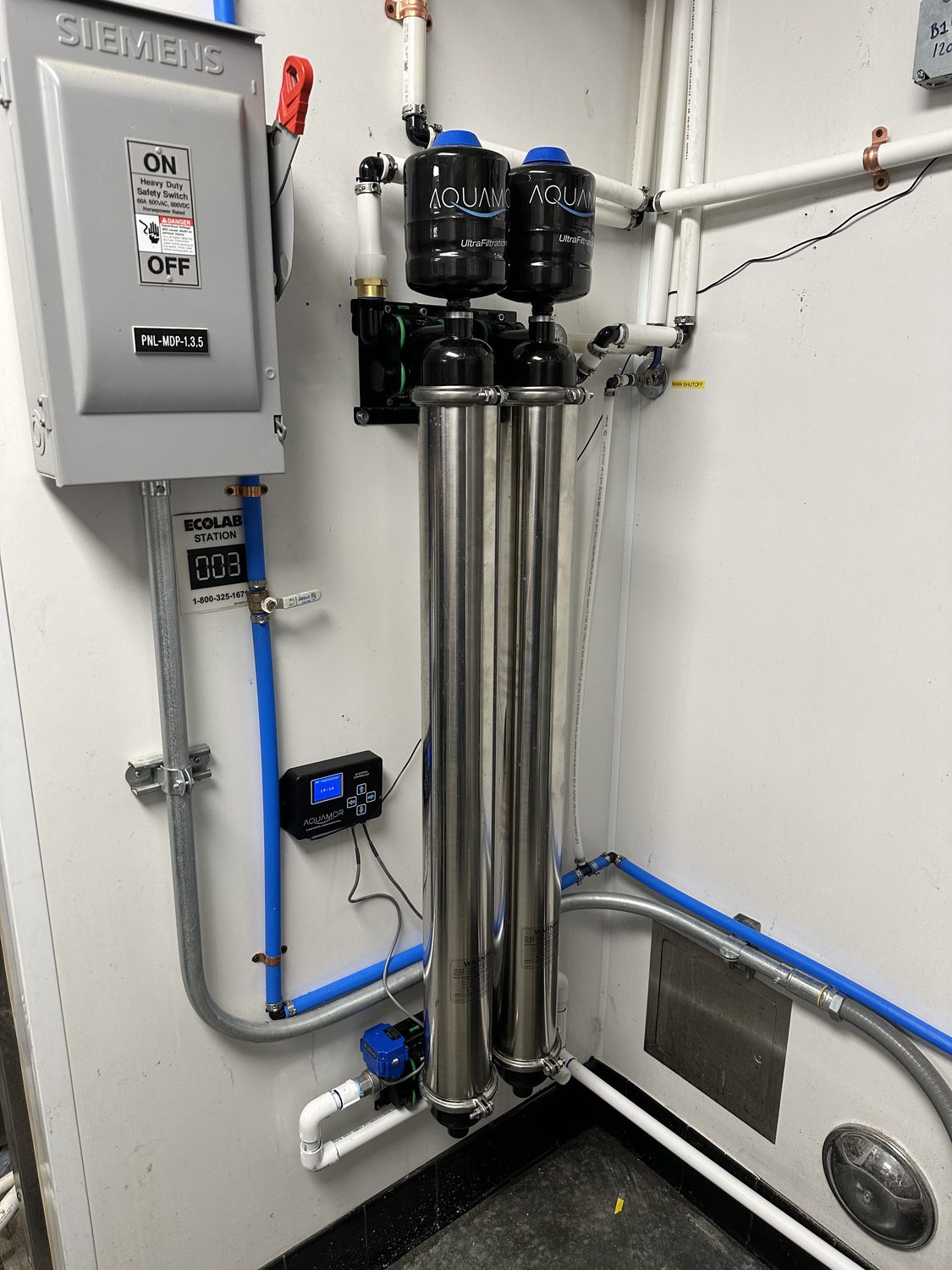

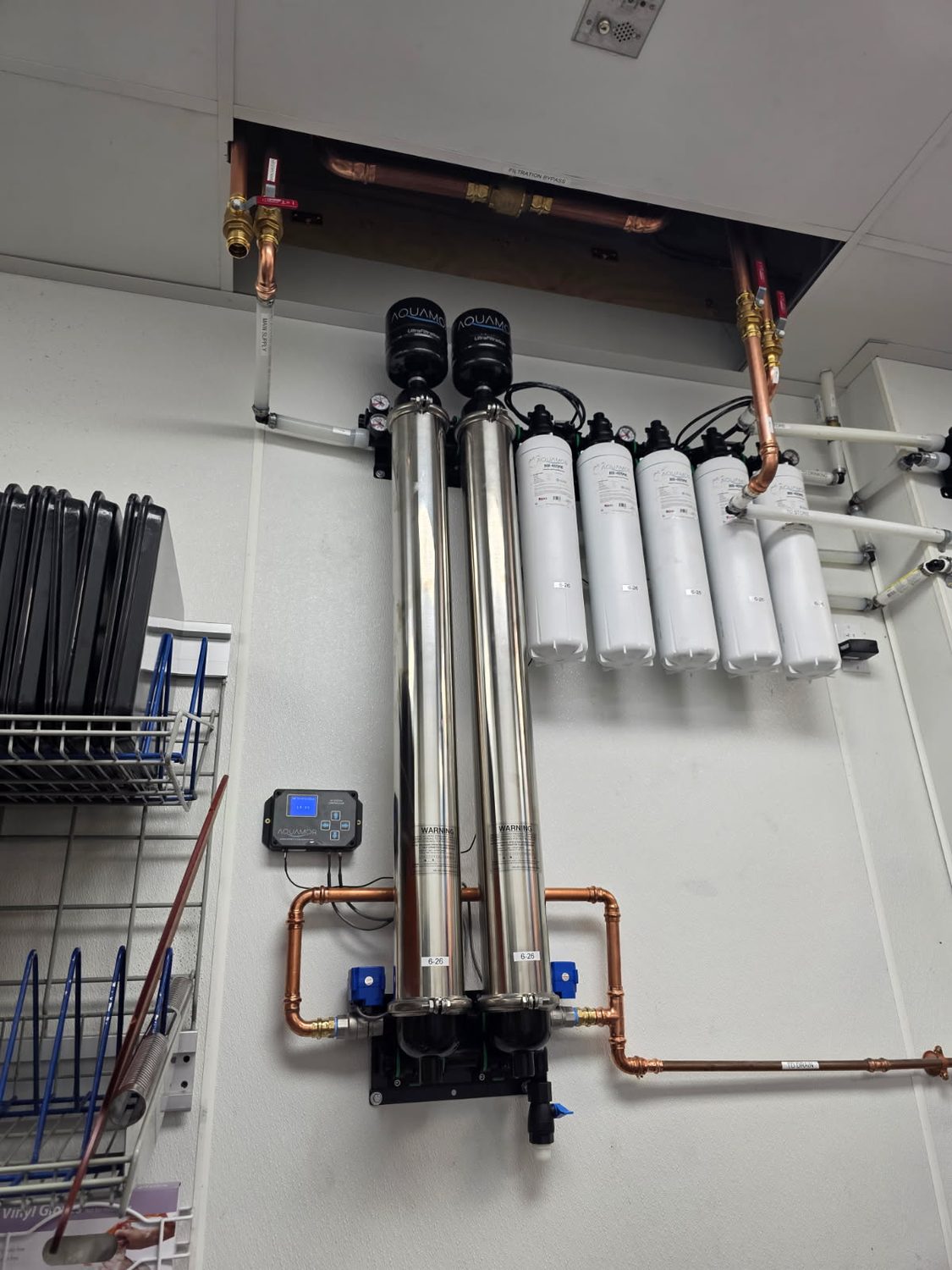

Aquamor UltraFiltration systems place a self-cleaning 0.015-micron hollow-fiber membrane at point of entry, before the ice machine, brewer, cold-beverage dispenser, or steam equipment. The membrane physically blocks cysts, turbidity, and suspended particles without chemistry, without softening the water, and without a booster pump on standard line pressure.
NSF/ANSI 53 certified for cyst reduction — third-party verified, not asserted. Certifications AQ UF-20 and AQ UF-40 cover all four standalone models.
Four models, 8 to 30 GPM — size from a single equipment run (UF-4210, 8 GPM) to a high-volume POE application (UF-4420, 30 GPM) on the same platform.
Self-cleaning automatic backwash controller — reduces service call frequency without requiring a membrane change on a fixed calendar.
Optional NSF post-filtration — add chlorine and chloramine reduction to the UF stage where water quality demands it.
UF-42xx Quick Reference
| Model |
Configuration |
Max Flow |
| UF-4210 |
20-inch Single |
8 GPM |
| UF-4220 |
20-inch Double |
15 GPM |
| UF-4410 |
40-inch Single |
15 GPM |
| UF-4420 |
40-inch Double |
30 GPM |
All models: NSF/ANSI 53 cyst reduction certified. 30 to 85 psi. 1-inch and 3/4-inch MNPT.
